A dedicated screening vehicle with separate clinical working areas for women’s health services. The proposal includes breast and cervical screening arrangements.
A private, welcoming mobile workspace designed for early breast and cervical cancer screening, supporting timely assessment and follow-up.
Configuration in the product series
Model in this document
Golden Dragon XML5127XYL16
Chassis stated in document
Golden Dragon
Dimensions (L × W × H)
8190 × 2500 × 3240 / 3300 / 3460 mm
Engine power
169 kW
Displacement
5132 ml
Fuel
Diesel
Emission standard
China VI
A CLOSER LOOK
Details & layouts.

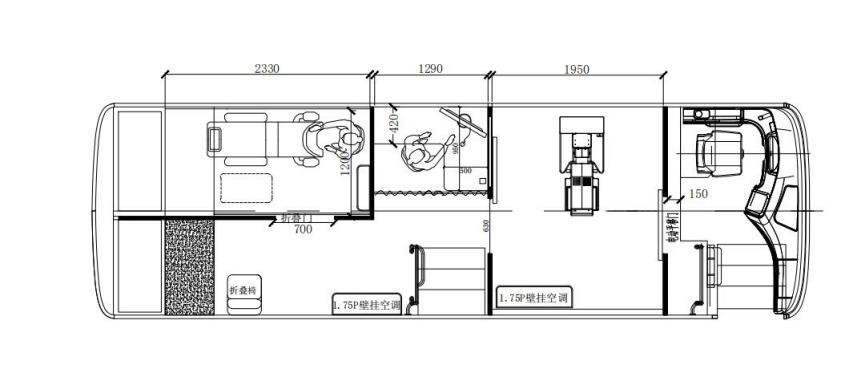

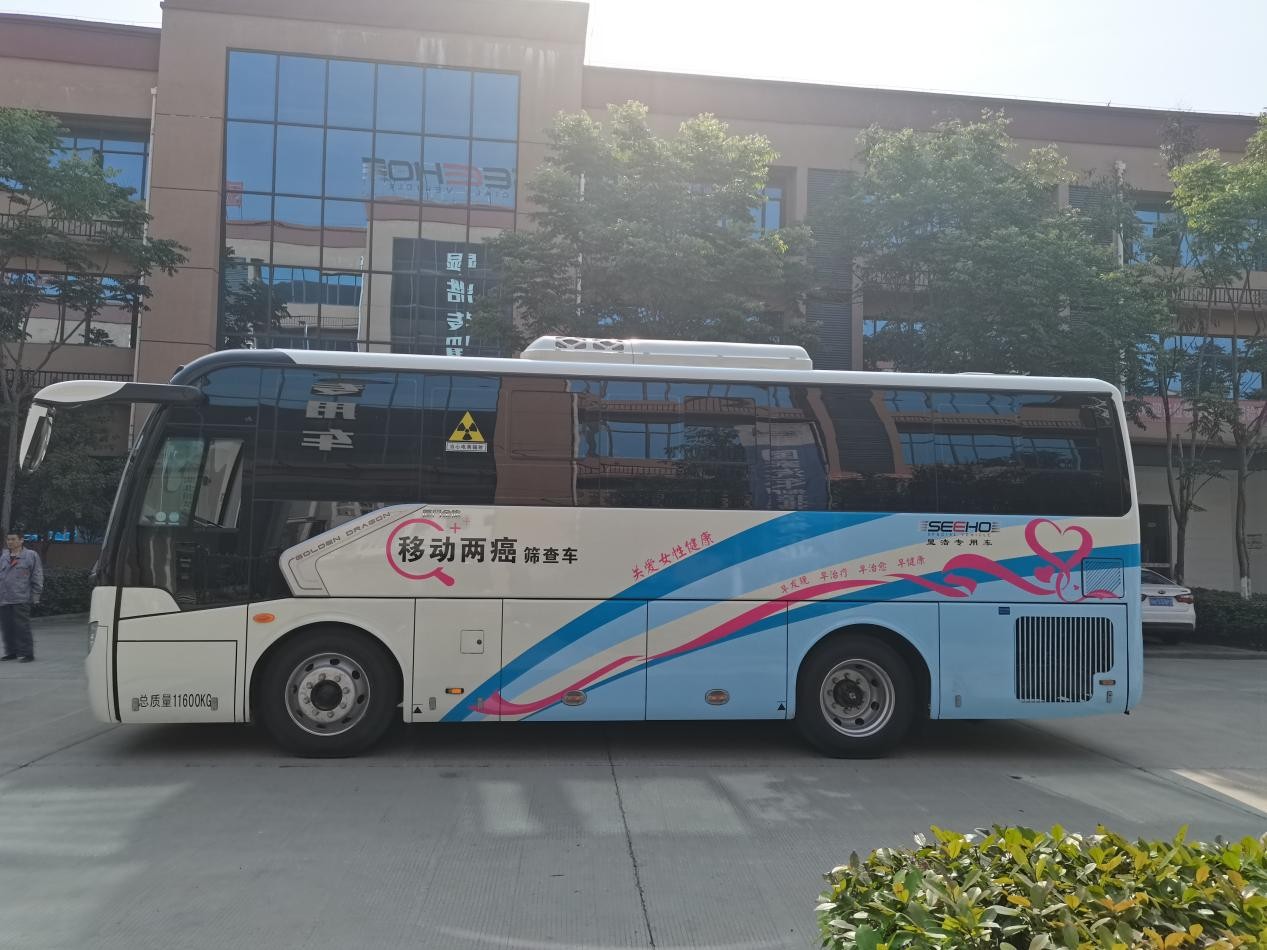

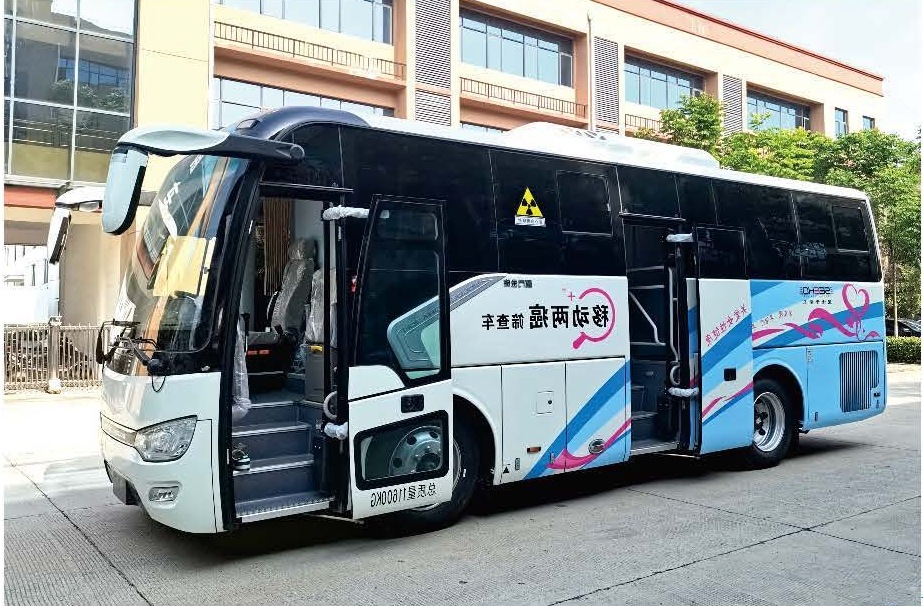

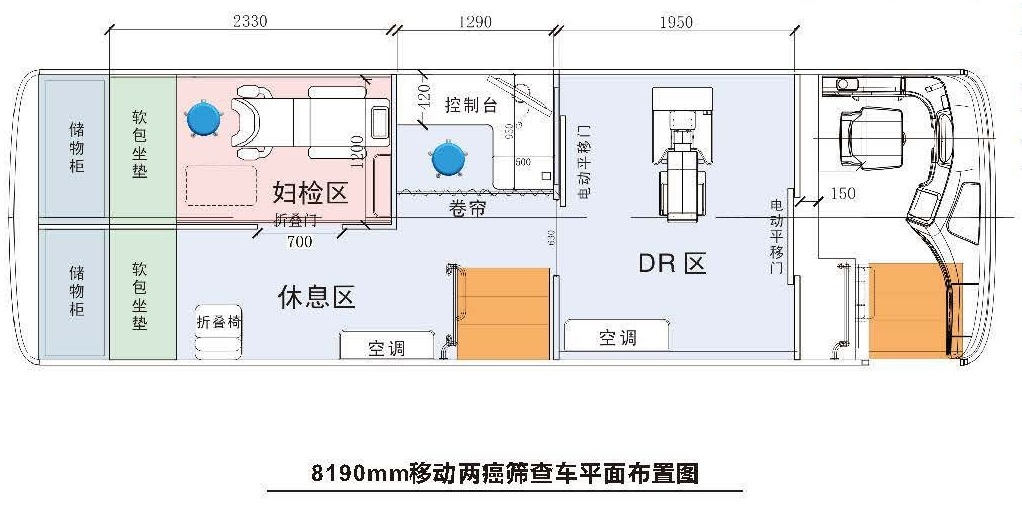

8.2 m women’s health screening layout from the brochure. Click to enlarge.Alternate view of the screening bus in the company brochure. Click to enlarge.8.2m Women’s Health Screening Vehicle: vehicle, equipment or layout reference from the product series. Click to enlarge.8.2m Women’s Health Screening Vehicle: vehicle, equipment or layout reference from the product series. Click to enlarge.
A mobile health examination workspace combining dedicated clinical areas with onboard utilities. The layout can be discussed around your screening programme and equipment.
A mobile health examination workspace combining dedicated clinical areas with onboard utilities. The layout can be discussed around your screening programme and equipment.
