Share your destination, intended use and equipment requirements with our team.
VEHICLE OVERVIEW
Configuration at a glance.
Reference details from the supplied vehicle brochure or proposal. Dimensions and equipment may change with the selected chassis and project.
Brochure / proposal reference
Application
Public Health
Platform
IVECO box-body medical vehicle
Vehicle / solution
Box-body Public Health Clinic
Configuration
Layout and equipment selected for the project
ONBOARD CONFIGURATION
Built around the work.
01
Medical examination space
02
Work surfaces and storage
03
Separate medical box body
PRODUCT SERIES
Equipment & technical details.
Mobile examination vehicles bring screening services directly to communities and workplaces. Layouts can include a radiation-shielded DR room and an audiometry room, selected for the examination programme.
Medical cabinets, exterior lighting, external power connections, onboard power, ventilation and air conditioning support the working environment. Major equipment is securely mounted for travel, with accessible storage and restraints for portable equipment.
Interior layouts are tailored to the end user, with vehicle lengths from 6 to 12 metres described in this series.
This section names JMC Fushun as the chassis, while the same model is listed as IVECO in the blood-collection section. Chassis and engine rating must be confirmed for this version.
Configuration in the product series
Model in this document
SEEHO XHA5041XYL05
Dimensions (L × W × H)
5995 × 2510 × 3010 mm
Engine power
135 kW
Displacement
2998 ml
Fuel
Diesel
Emission standard
China VI
A CLOSER LOOK
Details & layouts.

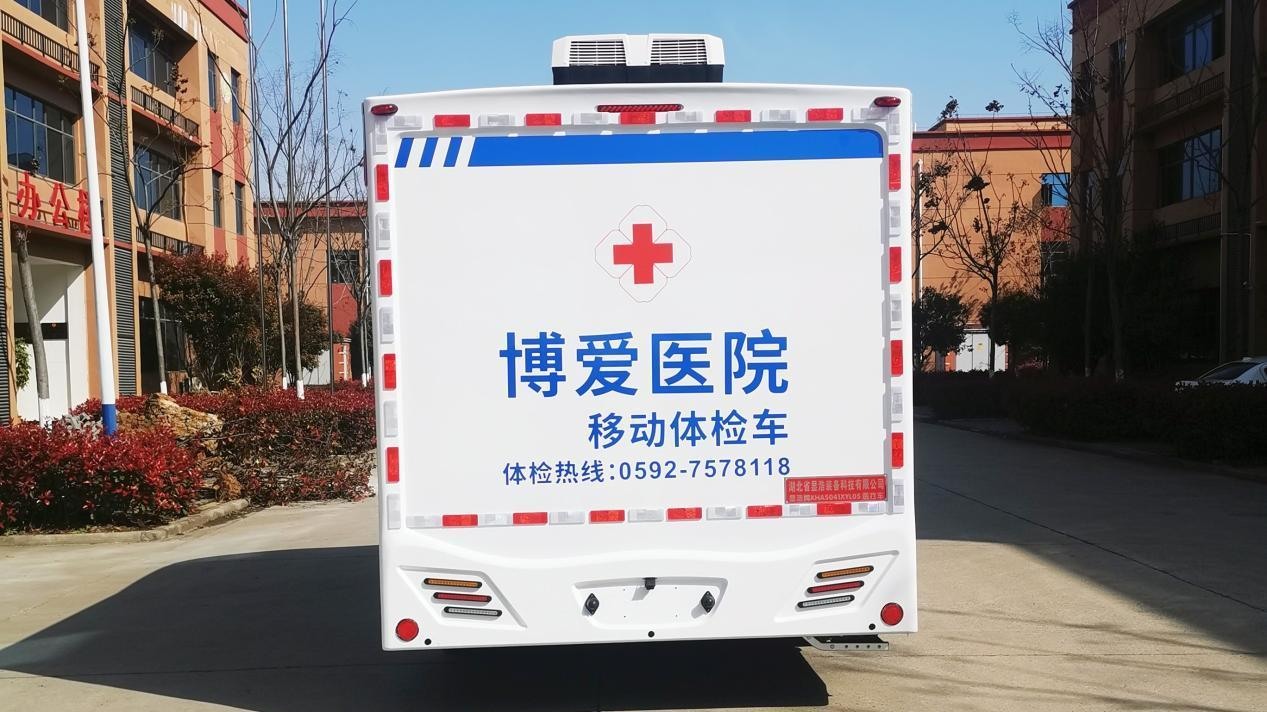

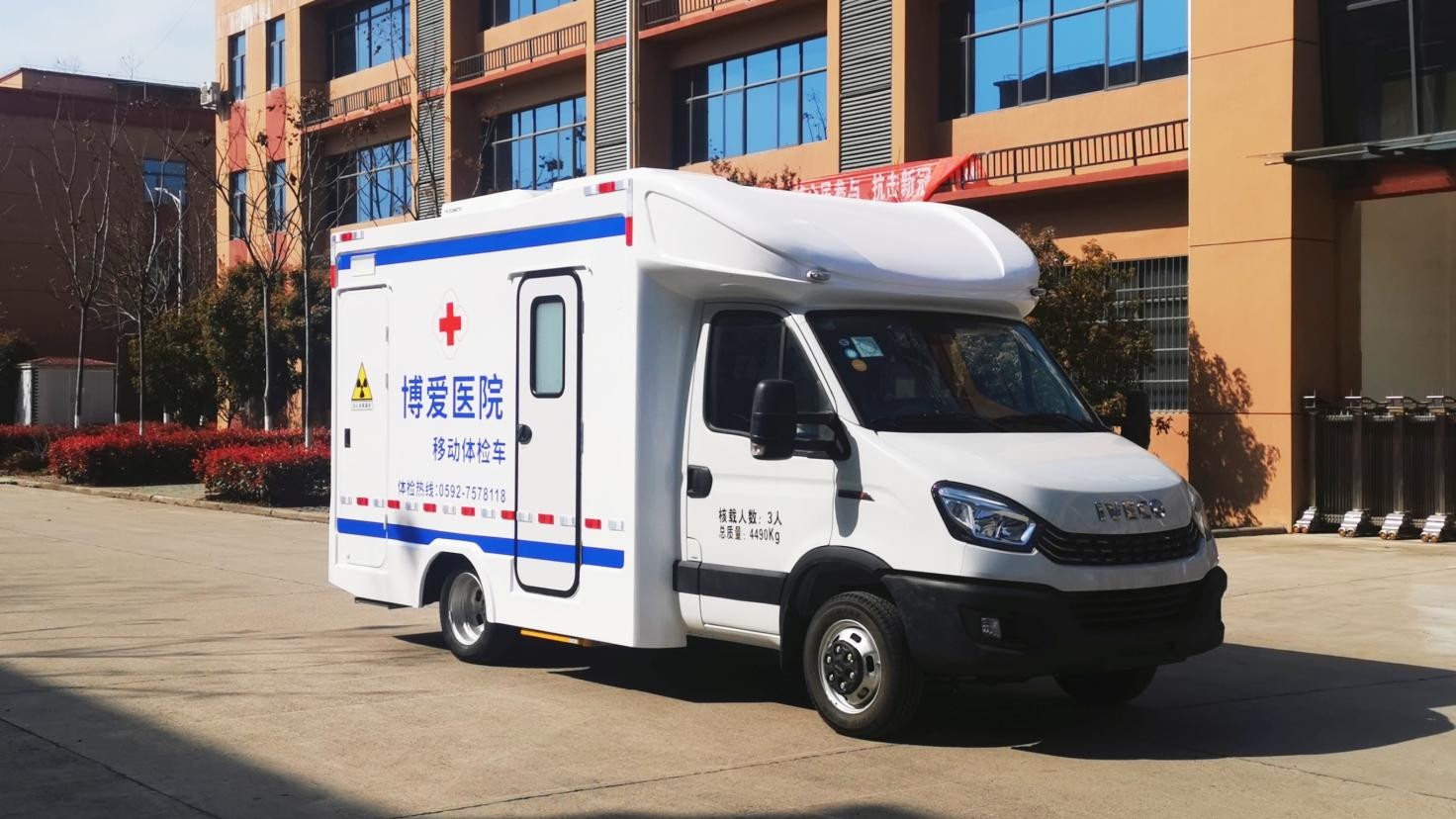

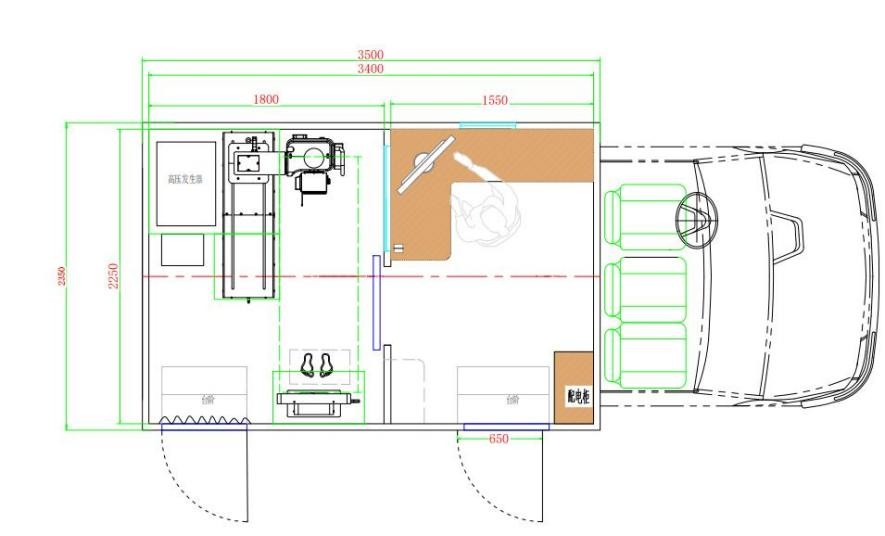

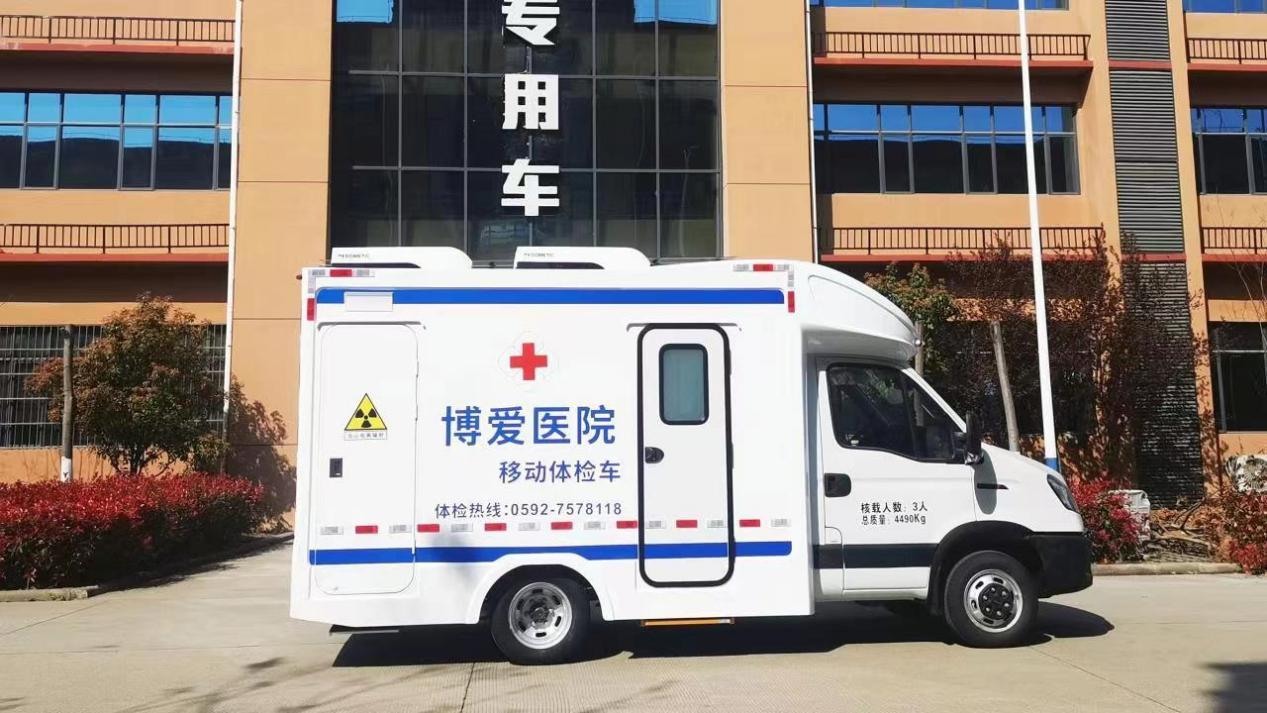

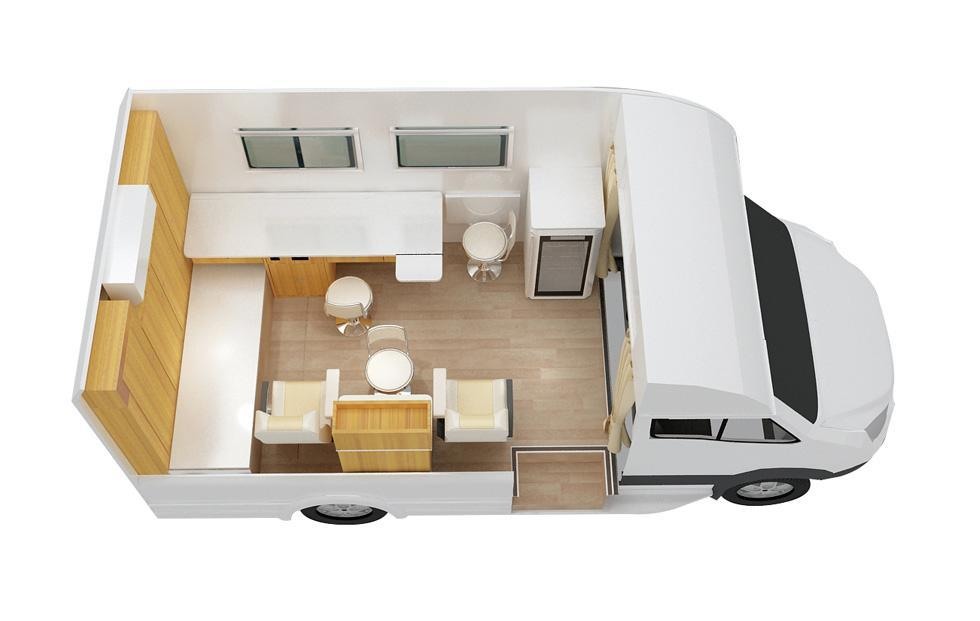

Vehicle or layout reference from the source proposal. Click to enlarge.Vehicle or layout reference from the source proposal. Click to enlarge.Vehicle or layout reference from the source proposal. Click to enlarge.Box-body Public Health Clinic: vehicle, equipment or layout reference from the product series. Click to enlarge.Box-body Public Health Clinic: vehicle, equipment or layout reference from the product series. Click to enlarge.
A mobile health examination workspace combining dedicated clinical areas with onboard utilities. The layout can be discussed around your screening programme and equipment.
A mobile health examination workspace combining dedicated clinical areas with onboard utilities. The layout can be discussed around your screening programme and equipment.
