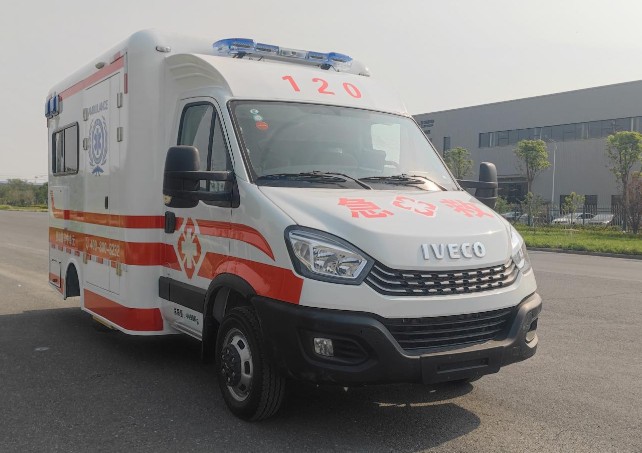

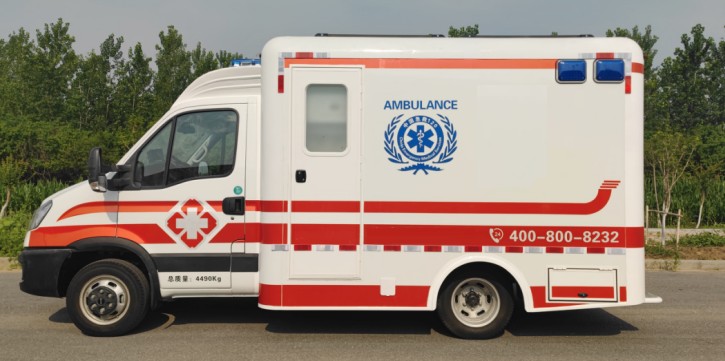

IVECO 2WD Box Ambulance — Portfolio photograph
Portfolio photograph · Click to enlarge
Box & off-road ambulances

IVECO 2WD Box Ambulance

A separate medical cabin on a commercial vehicle platform, with space planned for the patient, attending crew and onboard equipment.

Share your destination, intended use and equipment requirements with our team.

VEHICLE OVERVIEW

Configuration at a glance.

Reference details from the supplied vehicle brochure or proposal. Dimensions and equipment may change with the selected chassis and project.

Brochure / proposal reference
ApplicationBox & off-road ambulances
PlatformIVECO NJ1046EFC
Brochure chassisNJ1046EFC
Drive2WD
Wheelbase3300 mm
Transmission8-speed automatic

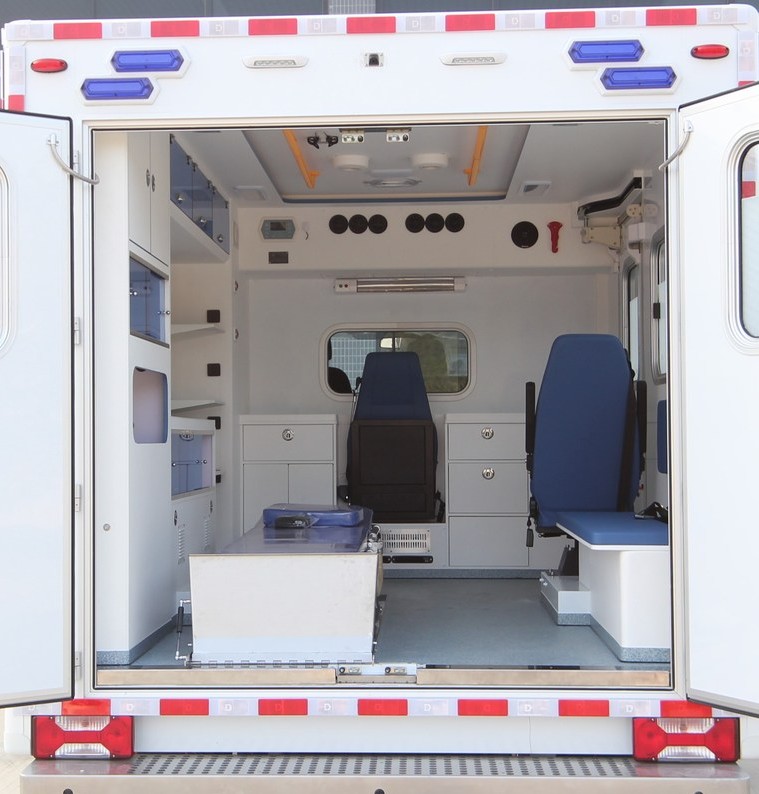

ONBOARD CONFIGURATION

Built around the work.

01

Patient and stretcher space

02

Medical equipment and storage

03

Onboard lighting, power and seating

Configurations in the company materials

  • Standard and higher-equipment box-body proposals

Confirm the selected layout and equipment with our team.

PRODUCT SERIES

Equipment & technical details.

Designed for patient transfer, emergency care and monitoring, with vehicle handling and power suited to emergency-service operations. Vehicle registration is arranged under the requirements of the destination.

The documented electrical configuration uses integrated circuits and touchscreen controls for date, time, temperature, humidity, battery and AC voltage monitoring; timed disinfection lighting; ventilation, suction, inverter and cabin lighting controls. Electrical overload protection supports onboard equipment.

The proposed four-camera 4G system covers the exterior, driver area, medical compartment and rear of the vehicle. Driver-to-cabin communication, recording, hospital control-room connectivity and GPS route monitoring support remote coordination.

Available equipment includes domestic or imported defibrillators, ventilators and stretchers, suction equipment, negative-pressure equipment, a digital multichannel ECG, an infusion pump and other selected clinical equipment.

Configuration in the product series
Model in this documentSEEHO XHA5040XJH09
Chassis stated in documentIVECO
Dimensions (L × W × H)5999 × 2470 × 2950 mm
Engine power135 kW
Displacement2998 ml
FuelDiesel
Emission standardChina VI
A CLOSER LOOK

Details & layouts.
